Description


This LED panel is a great replacements for 2'x4' fluorescent fixtures. It provides great lumen output while saving customers over 50% on each fixture. Furthermore, this LED 2x4 LED panel is UL and DLC certified, which means they come with a 5 year warranty.


SKU: GT2X4505K
Qualification: UL, DLC
Size: 23.6" x 47.2" × .47" // 600mm x 1200mm x 12mm
Watts: 50W
Lumens: >3600 Lm
Color: 5000K
Trim: Frosted
CRI: >75
Input Voltage: 100-277V/50-60Hz
Lifespan: 50,000 hours
LED SMD diodes: 280 pcs SMD 2835 LED
Warranty: 5 years
Dimmable: Yes
Applications: Office Buildings, Convenient Stores, Restaurants, Hotels, Motels, Hospitals, Drop Ceilings

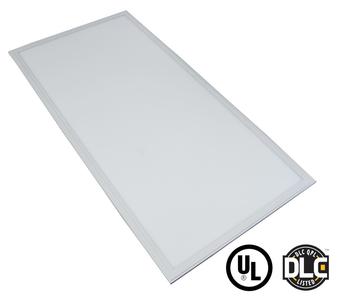

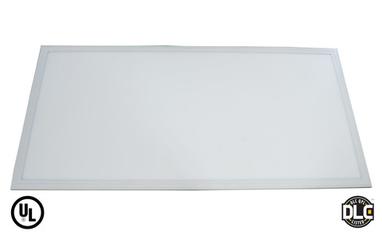

2x4 50W LED Panel Light - 5000K - (DLC+UL)

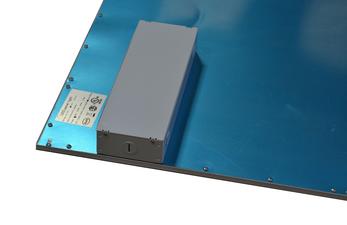

Description


The 2 x 2 LED Panel delivers exceptional 90+ CRI light while achieving over 80 lumens per watt. This breakthrough performance is achieved by combining the high efficacy and high-quality light of LM-80 Tested Samsung SMD LED's. Available in 36W and 5000K color temperatures; the LED Panel fixture is designed to easily install in existing drop-in ceilings making it ideal for offices and other commercial applications. Our panels are also UL and DLC certified, which they come with a 5 year warranty.


SKU: GT2X2365KD
Qualification: UL, DLC
Size: 24" x 24" x .5" // 600mm×600mm×12mm
Watts: 36W, 45W
Lumens: >3600 Lm
Color: 5000K
Trim: Frosted
Beam Angle (°): 120
CRI: >90
Input Voltage: 100-277V/50-60Hz
Lifespan: 50,000 hours
LED SMD diodes: 192 pcs SMD 2835 LED
Warranty: 5 years
Dimmable: Yes

2x2 LED Panel Light - 5000K - (DLC+UL)

Description

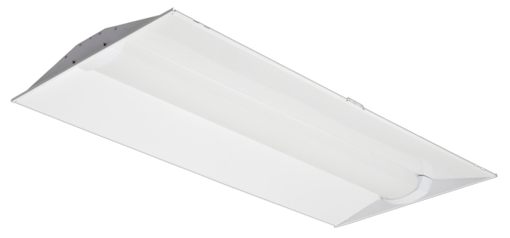

The ZR24™ LED troffer delivers 4000 lumens of superior 90 CRI light quality and is perfect for both new construction and renovation. Powered by Cree TrueWhite® Technology, the slim and lightweight ZR24™ LED troffer boasts an efficacious 90 LPW performance along with 0-10V dimming to meet local energy codes. The ZR24™ LED troffer embodies a breakthrough in balancing energy savings, visual comfort and initial cost.


SKU: ZR-24-40L-40K-10V
Certification: UL, DLC

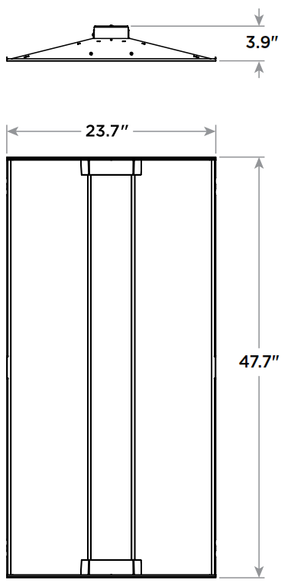

Size: 23.7" x 47.7" x 3.9"  // 602mm x 1212mm x 99mm
Watts: 44W
Lumens: 4000
Color: 4000K
Trim: Frosted
Beam Angle (°): 120
CRI: ≥90
Input Voltage: 120-277V
Lifespan: 50,000 hours
Warranty: 10 years
Dimmable: Yes

ZR Series - CREE 2x4 LED Panel

Description

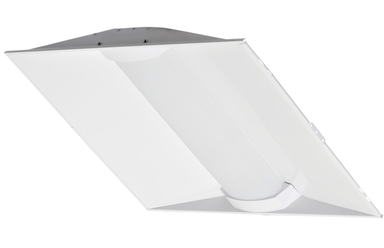

The ZR22™ LED troffer delivers 3200 lumens of superior 90 CRI light quality and is perfect for both new construction and renovation. Powered by Cree TrueWhite® Technology, the slim and lightweight ZR22™ LED troffer boasts an efficacious 90 LPW performance along with 0-10V dimming to meet local energy codes. The ZR22™ LED troffer embodies a breakthrough in balancing energy savings, visual comfort and initial cost.


SKU: ZR-22-32L-40K-10V
Certification: UL, DLC

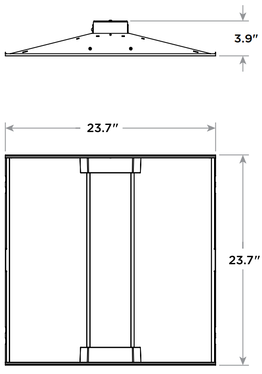

Size: 23.7" x 23.7" x 3.9"  // 602mm x 602mm x 99mm
Watts: 35W
Lumens: 3200
Color: 4000K
Trim: Frosted
Beam Angle (°): 120
CRI: ≥90
Input Voltage: 120-277V
Lifespan: 50,000 hours
Warranty: 10 years
Dimmable: Yes

ZR Series - CREE 2x2 LED Panel

Description

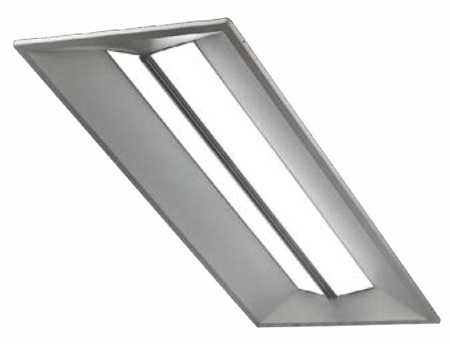

The CR24™ Architectural LED High Efficiency (HE) troffer delivers up to 130 lumens per watt of exceptional 90 CRI light at 4000 lumens. This breakthrough performance is achieved by combining
the high efficacy and high-quality light of Cree TrueWhite® Technology with a unique thermal management design. The CR24 (HD) option delivers enhanced spectrum 80+ CRI color quality. The
CR24 product family is available in warm, neutral, cool, or daylight color temperatures and has step, 0-10V, or Lutron EcoSystem® Enabled dimming options. Its compact, lightweight design makes the CR24 perfect for use in commercial new construction or renovated spaces
.


SKU: CR-24-40L-40K-S , CR-24-40L-40K-S-HD
Certification: UL, DLC

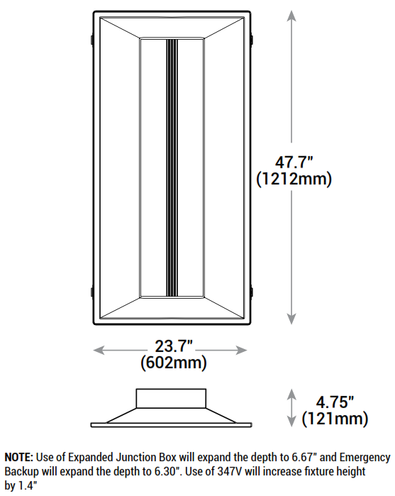

Size: 23.7" x 47.7" x 4.75"  // 602mm x 1212mm x 121mm
Watts: 40W
Lumens: 4000 Lm
Color: 4000K
Trim: Frosted
Beam Angle (°): 120
CRI: ≥90 , ≥80 for the S-HD
Input Voltage: 120-277V, (call if 347V is needed) - 50/60Hz
Lifespan: 50,000 hours
Warranty: 10 years
Dimmable: Yes

CR Series - CREE 2x4 LED Panel (90 CRI / 80 CRI)

CR Series - CREE 2x2 LED Panel (90 CRI , 80 CRI)

Description


The CR22™ Architectural LED troffer delivers up to 100 lumens per watt of exceptional 90 CRI light at both 3200 lumen levels. This breakthrough performance is achieved by combining the high efficacy and high-quality light of Cree TrueWhite® Technology with a unique thermal management design. The CR22™ (HD) option delivers enhanced spectrum 80+ CRI color quality. The CR22™ product family is available in warm, neutral, cool, or daylight color temperatures and has step, 0-10V, or Lutron EcoSystem® Enabled dimming options. Its compact, lightweight design makes the CR22™ perfect for use in commercial new construction or renovated spaces.


SKU: CR-22-32L-40K-S
CR-22-32L-40K-S-HD
Certification: DLC, UL
Watts: 32W

Size: 23.7" x 23.7" x 4.75"  // 602mm x 602mm x 121mm
Color: 4000K
Lumens: 3200
Trim: Frosty
Dimmable: Yes

Beam Angle (°): 120
CRI: ≥90 ,  ≥80 for the S-HD
Input Voltage:120-277V, (call if 347V is needed) - 50/60Hz
Lifespan: 50,000 hours
Warranty: 10 years
